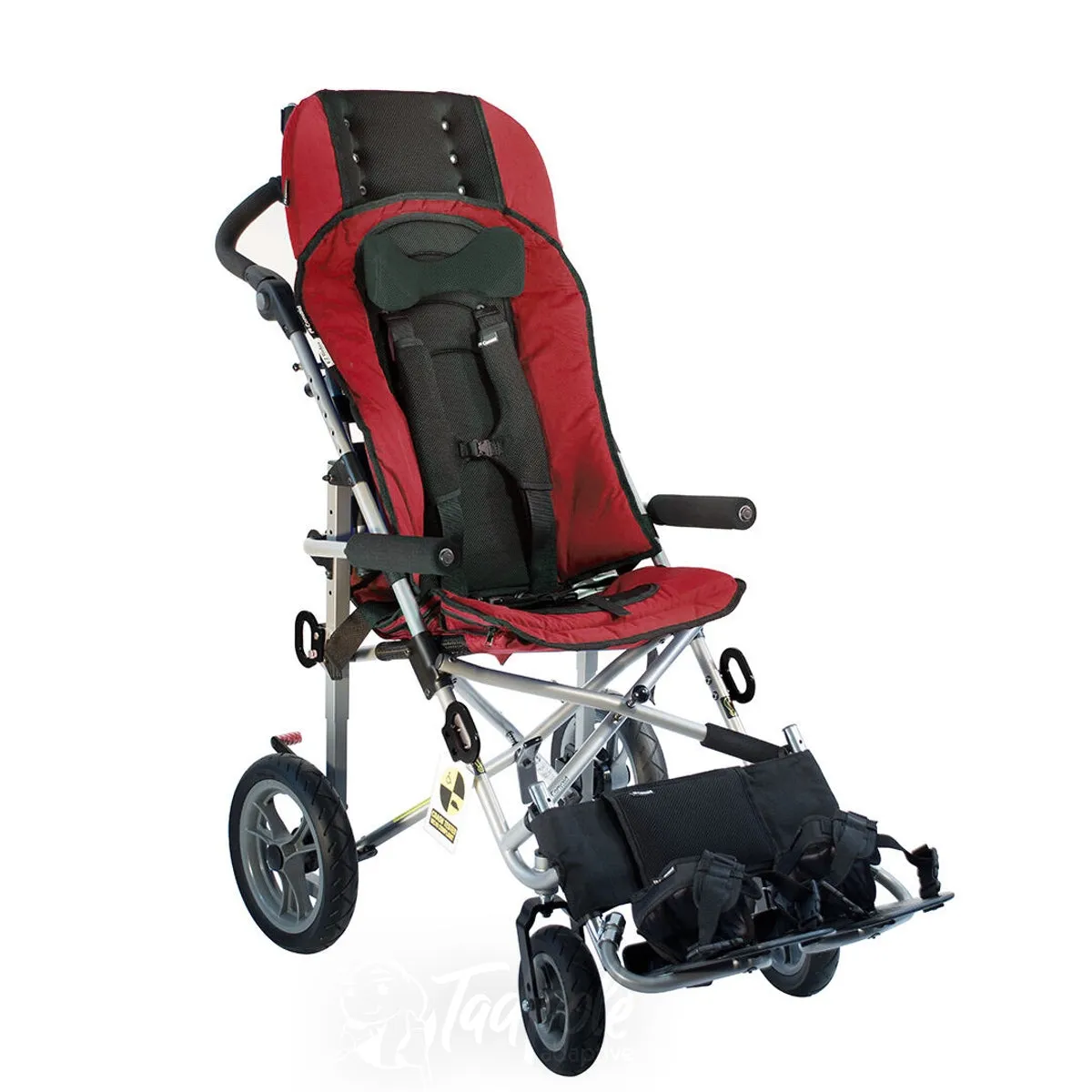

Name: Convaid EZ Rider Stroller
SKU: 22341

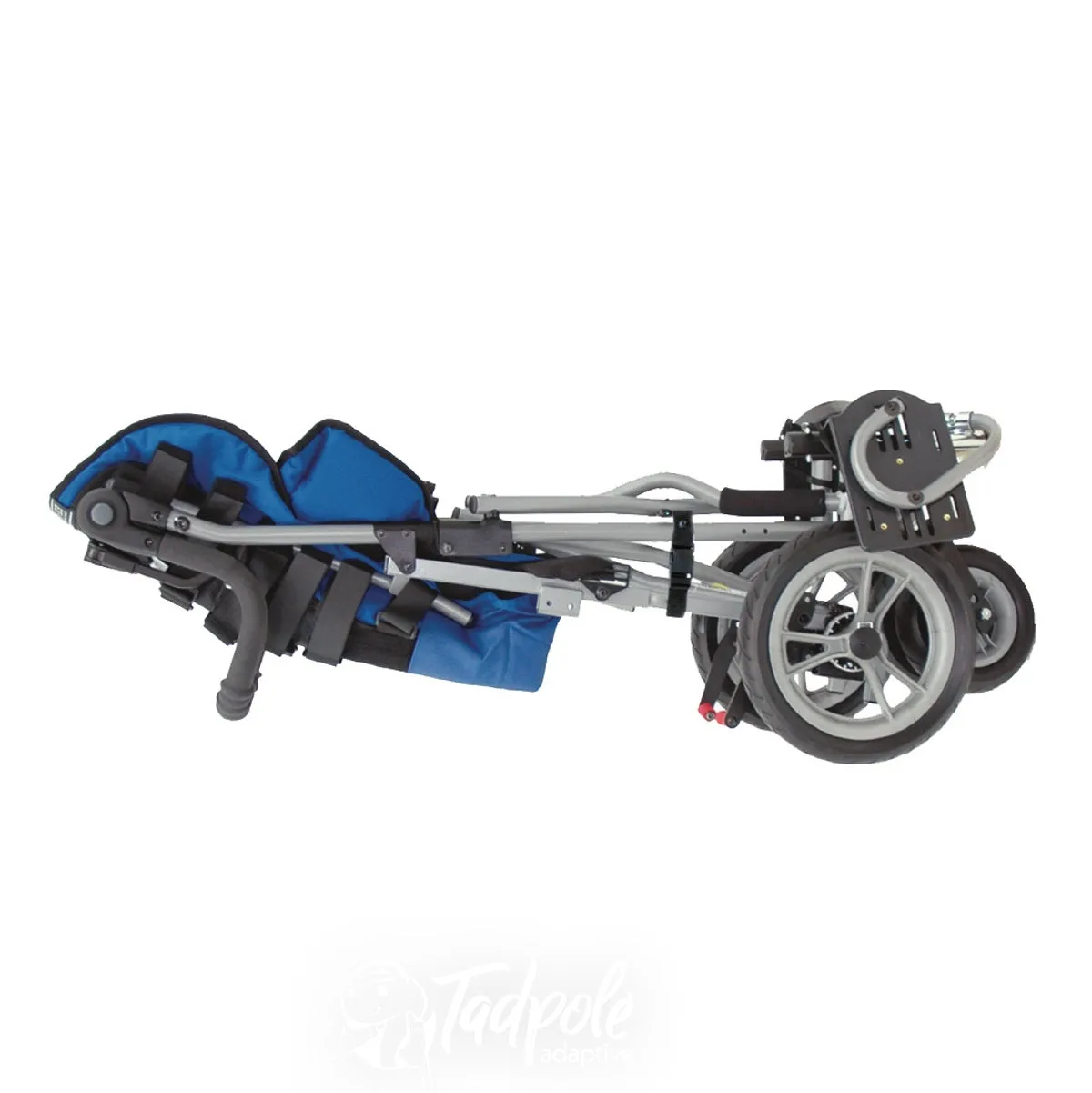

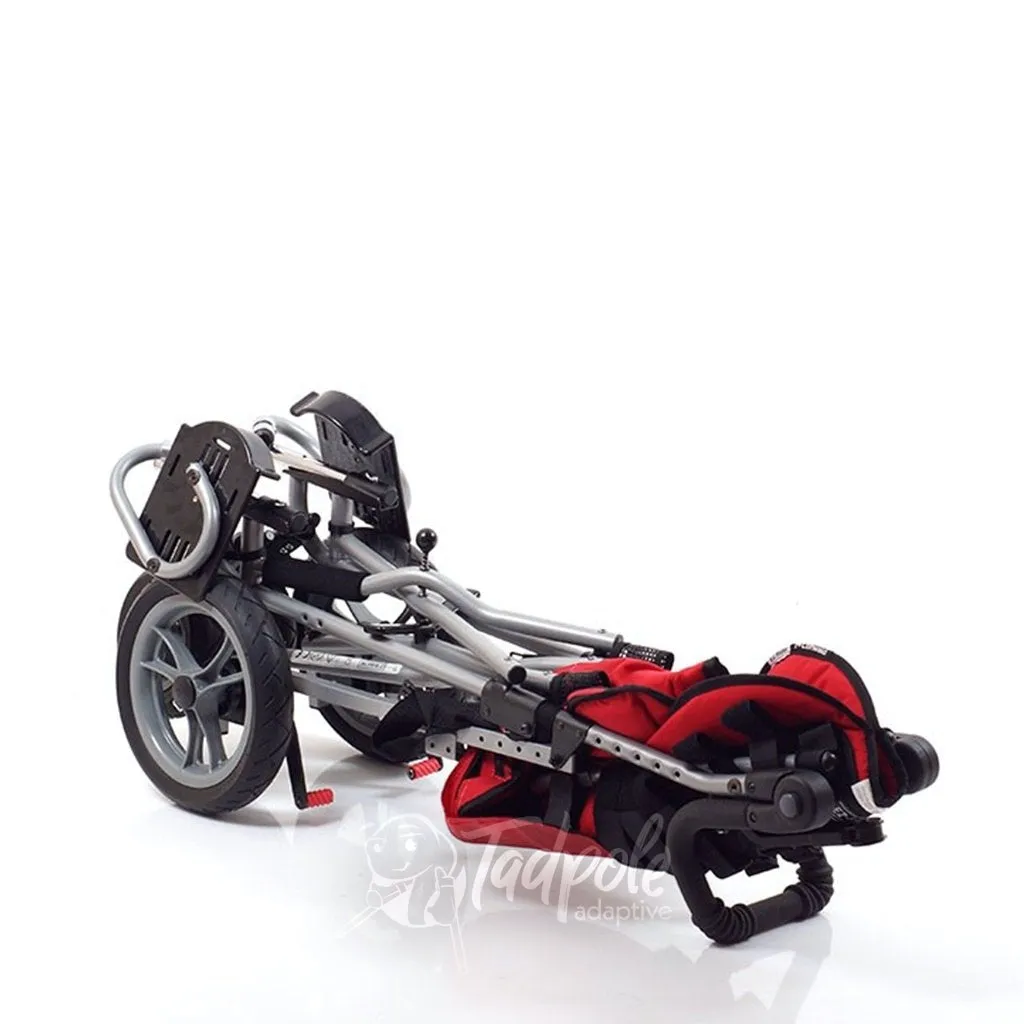

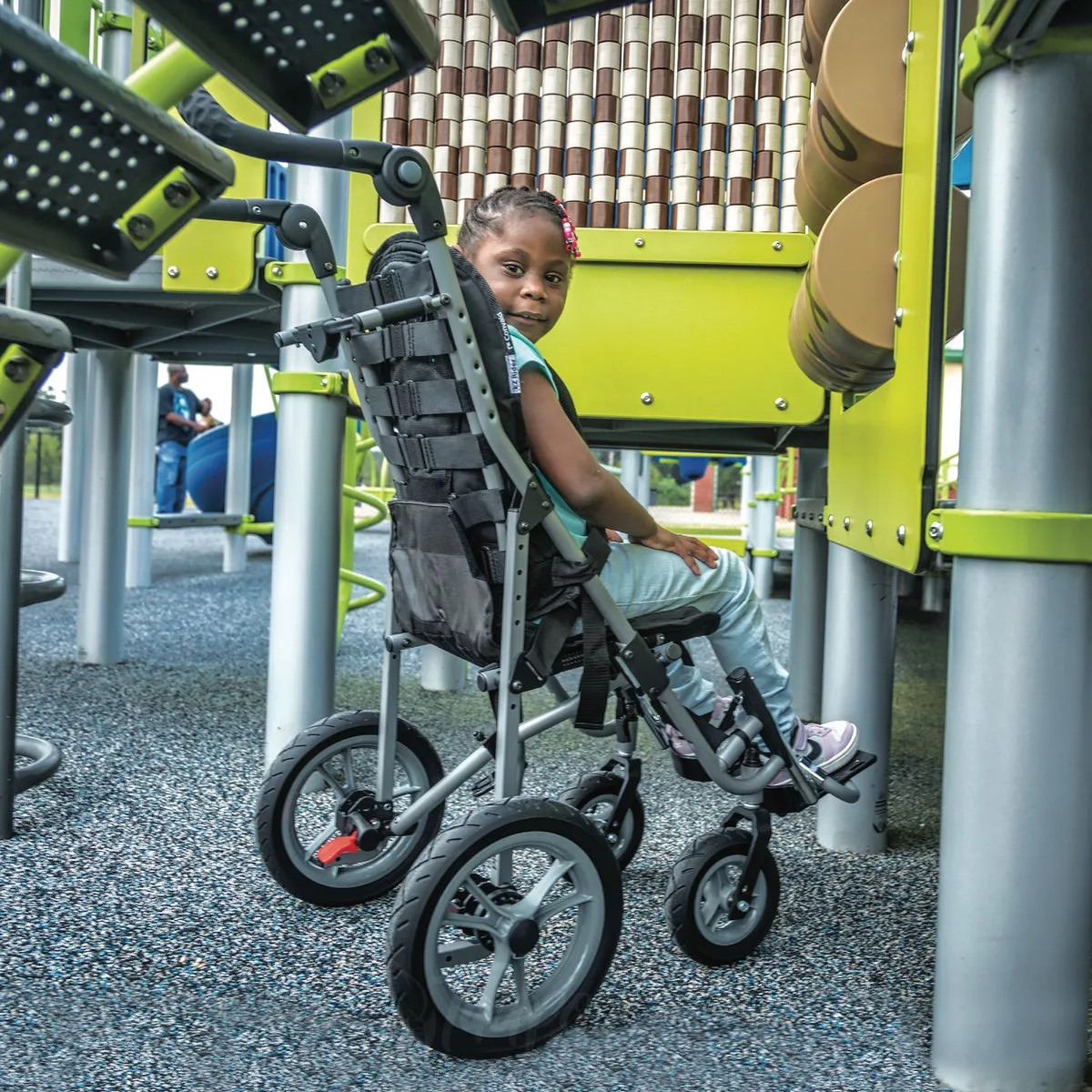

The EZ Rider is perfect for children and teens on the go! This lightweight folding wheelchair is easy to lift and carry, and folds compactly for transport and storage. The EZ Rider has a 10-degree fixed seat angle, which allows children with limited upper body control to sit upright and see straight ahead. The EZ Rider Wheelchair comes loaded with standard features, such as height adjustable footplates, adjustable seat depth and 2-point positioning belt. And, a variety of positioning options help achieve maximum comfort and support for your child.

Achieve proper seating for your child's individual needs. Choose from more than 20 different positioning options to customize this pediatric wheelchair.

Features

Upholstery featuring integrated back zippers

The back zippers allow for easy insertion of extra padding to enhance back support.

Upholstery featuring integrated seat zippers

The seat zippers enable the addition of foam inserts for extra padding and support.

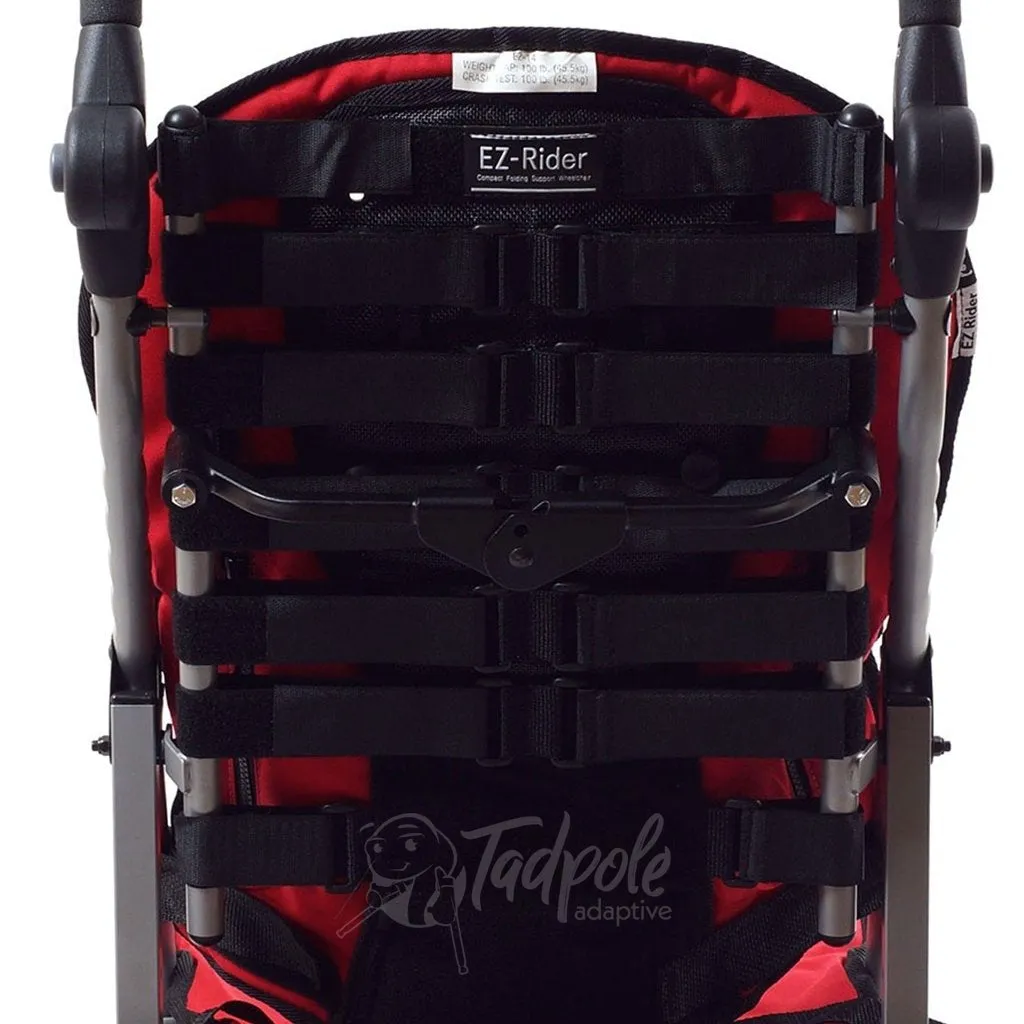

Back upholstery that can be adjusted for tension

Enables tailored positioning to fit the body's contours.

Self-Tensio®

The integrated self-tensioning seating system enhances comfort for extended sitting periods.

Upholstery Colors

Convaid's upholstery is globally recognized for its strength, resistance to wear, and superior performance. It feels good to touch and offers slight support with padded sections. The high-quality fabric used is both detachable and machine washable, ensuring user comfort.

Royal Blue

Sassy Purple

Cherry Red

Princess Pink

Panther Black

Forest Green

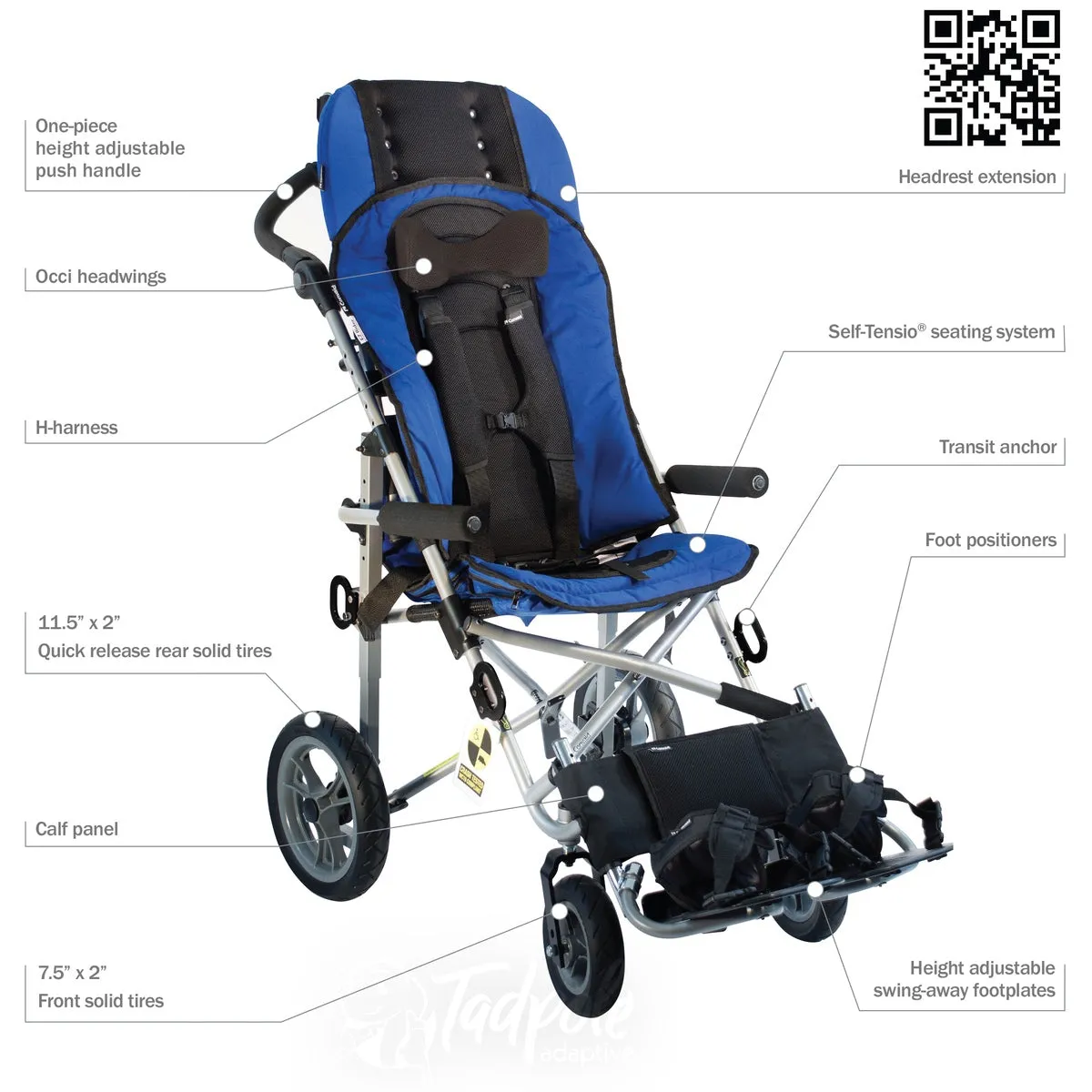

Standard Features

10° fixed tilt

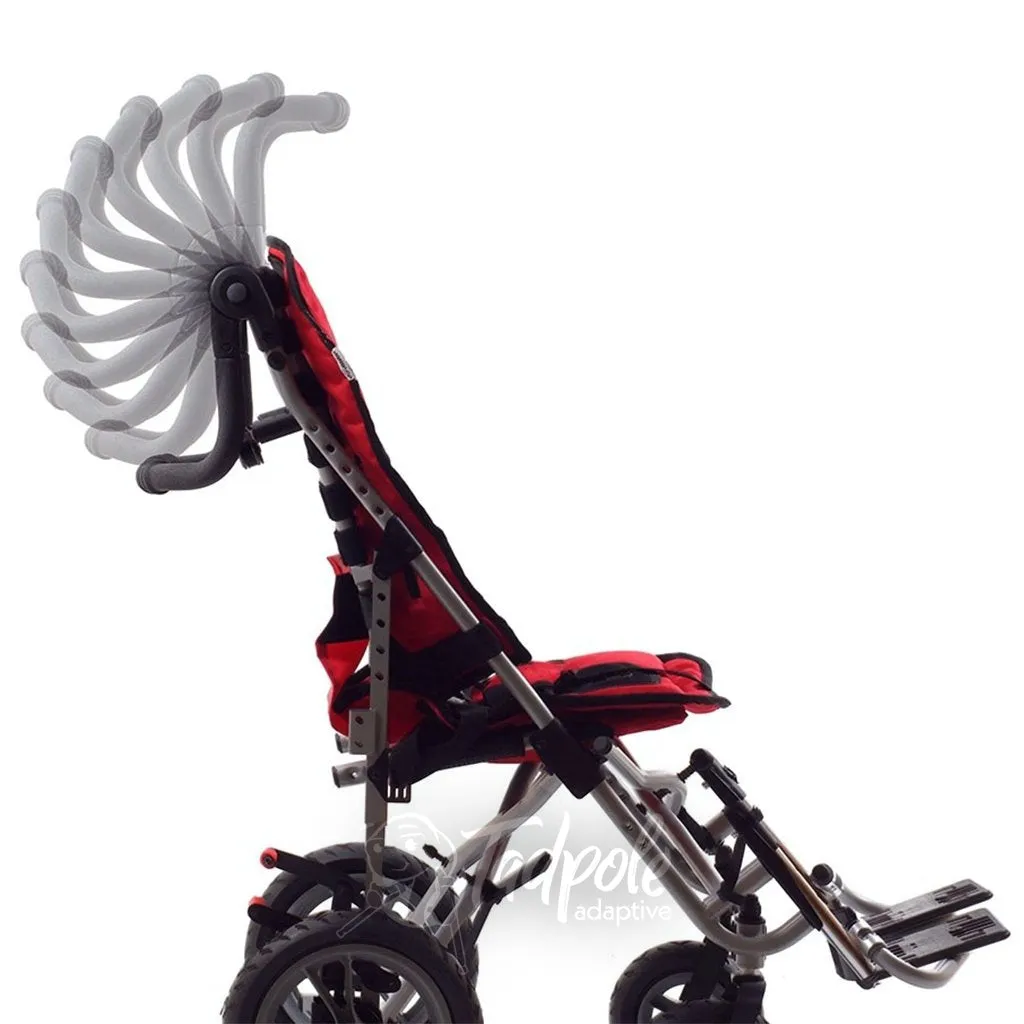

One-piece height adjustable push handle (EZ12/14/16)
Two-piece push handles (EZ18)

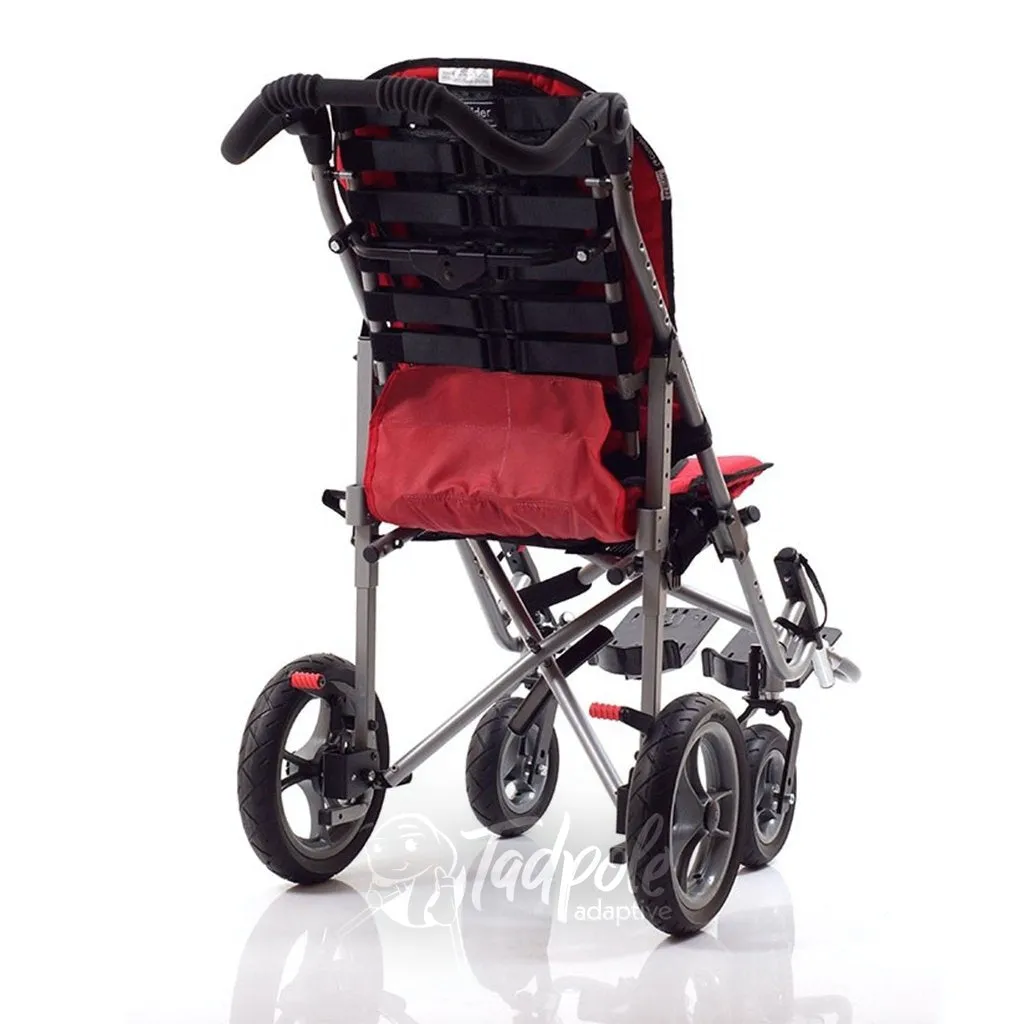

Tension adjustable back
Cordura or Textilene upholstery
Tool-less upholstery removal

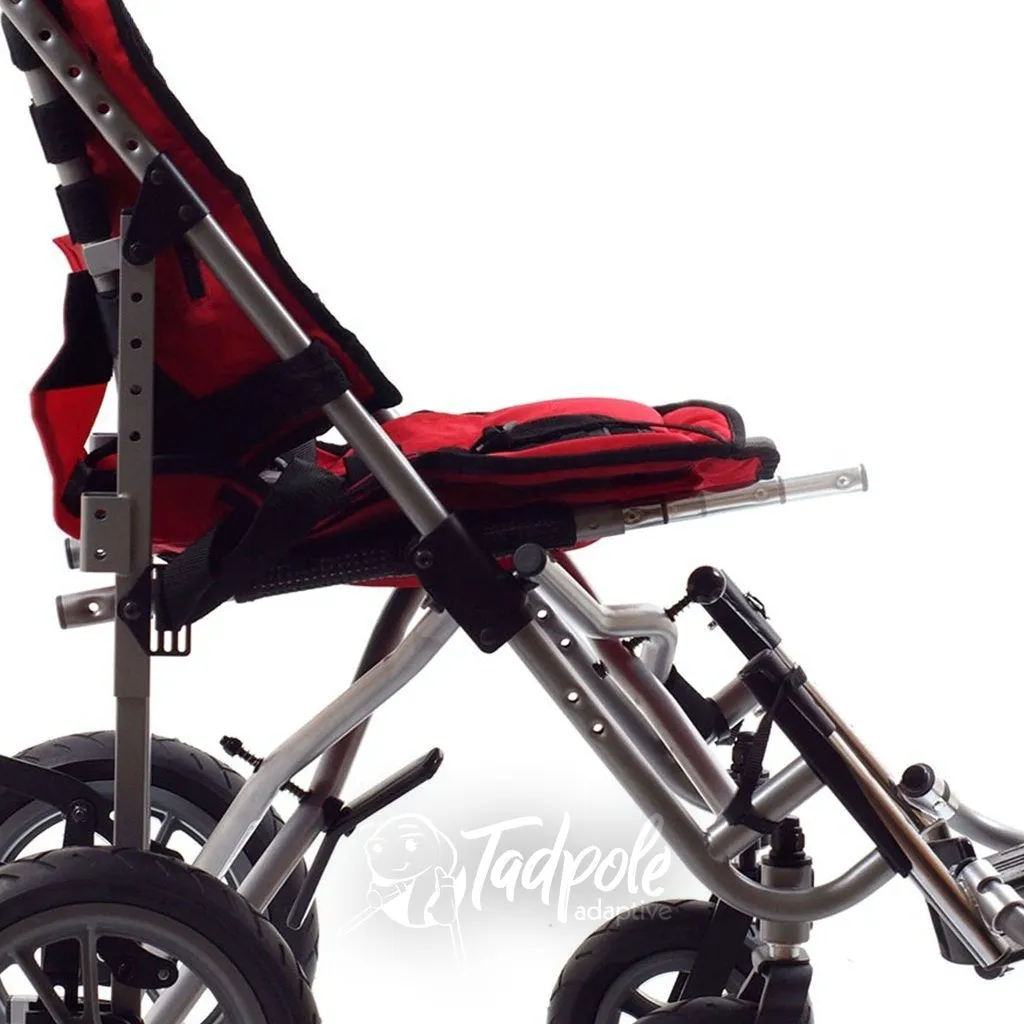

Tool-less adjustable seat depth growth of 5"
Zippered pockets in seat & back upholstery (Cordura only: EZ12/14/16)
2-point positioning belt

Self-Tensio®
Removable, height adjustable swing-away footplates
7.5” x 2" front, 11.5” x 2.5" rear solid tires (EZ12/14/16)
8” front and 11” rear solid tires (EZ18 required)
Quick release rolko rear wheels (EZ12/14/16)
Foot operated wheel lock
Toggle wheel locks (EZ18 required)
Silver powder coated frame
Closure strap
Made in the USA

Fitting Guide

Proper seating and positioning help maintain good posture, improving circulation, breathing, and digestion. It's important to adjust the chair to suit the user's needs. If the positioning isn't right, consider using additional accessories mentioned in the manual or consult a physical therapist. Incorrect seating can lead to health issues, so seeking advice from a physical therapist or doctor is recommended.

Step 1

Seat Back Height

- Seat back height depends on the chair type and seat width.
- Use headrest extensions for extra head support if needed.
- Measure from the seat to the top of the shoulder or upper head to find seat back height.

Step 2

Seat Width

- Seat back height depends on chair type and seat width.
- Headrest extensions can be used for additional head support.
- Measure from the seat to the top of the shoulder or upper head for seat back height.

Step 3

Seat Depth

- Seat back height depends on the type of chair and its width.
-Use headrest extensions for more height if needed for head support.
-Measure from the seat to the top of the shoulder or head to determine seat back height.

Size Chart

	EZ 12	EZ 14	EZ 16	EZ 18
Seat width	12”	14”	16”	18”
Seat depth	9–14”	11–16”	12–17”	14.5–19.5”
Seat back height^	21”(C) / 19"(T)	24”(C) / 22"(T)	26”(C) / 24"(T)	27”(C) / 25"(T)
Seat to floor	19”	20”	20”	21.5”
Seat to back angle	100°	100°	100°	100°
Seat angle	10°	10°	10°	10°
Overall height	38”	38.5”	40”	37”
Overall length	36”	37.5”	43.5”	48”
Overall width	21.5”	23”	26”	26”
Folded length	44.5”	46”	48”	45.5”
Folded width	17.5”	18”	17”	15.5”
Folded height	14”	13.5”	14”	14.5”
Headrest extension height	8”	8”	8”	10”
Shoulder strap heigh	11–17”	14–20”	15–21”	16–22”
Seat to footplate*	3 – 20"	3 – 21"	3 – 22"	3 – 22"
Push handle adjustments^^	29 – 46.5”	29 – 47”	28 – 45”	N/A
Weight capacity regular/transit	75/66 lbs	100/100 lbs	170/170 lbs	250/170 lbs
Weight of chair without front rigging	25 lbs	30 lbs	30 lbs	29 lbs

* Plus or minus .5 inches due to fabric
^ Seat back height
C - Cordura upholstery
T - Textilene upholstery
^^ Adjustable push handle is not available on 18 inch models

Accessories

Head supports

Padded Headwings

The adjustable headwings, equipped with soft foam, offer lateral support to maintain the head's central alignment.

Postural supports

Reducer Seat Insert

Ensures correct seating in a larger wheelchair, optimizing the opportunity for growth.

Trays

Clear Tray

The tray offers support and positioning for the arms, enhancing their use for communication, therapy, and educational tasks.

Bags and baskets

Utility Bag

Ideal for keeping important medical supplies and disposable items. It can be easily detached from the chair and transformed into a handy tote when taken off.

Castors

Caster Lock for 2" Wide Front Tires

Offers a leverage point for lifting the front of the chair, facilitating curb navigation. Requires installation by the manufacturer.

Leg and foot supports

Calf Panel

Supports the lower legs, offering extra support, pressure relief, and comfort, particularly beneficial when the chair is tilted or reclined.

Vests, belts and straps

Full Torso Support Vest

Suitable for individuals with a protruding abdomen and a flexible pelvis and spine to help shift their weight back over the pelvis or to prevent forward bending of the body.

Cushions

Align - Lateral Pelvis/Lateral Thigh Support

Contoured edges offer lateral pelvic stability and thigh positioning, minimizing pelvic side-to-side motion and enhancing stability of the lower limbs.

Bags and baskets

Wheelchair Travel Bag

This wheeled travel bag, ideal for carrying your chair on airplanes, trains, or buses, is made from durable Cordura fabric and features two-way zipper pulls.

Anti-tippers

Rear Anti-Tip Tubes

Offers extra safety by preventing the chair from tipping backwards when the weight is unevenly distributed.

Outdoor use

Extended Headrest Cover - No Windows (Canopy)

Offers enhanced protection against sunlight, wind, and environmental elements, particularly for patients with skin sensitivity to sunlight due to a clinical condition or medication.

Outdoor use

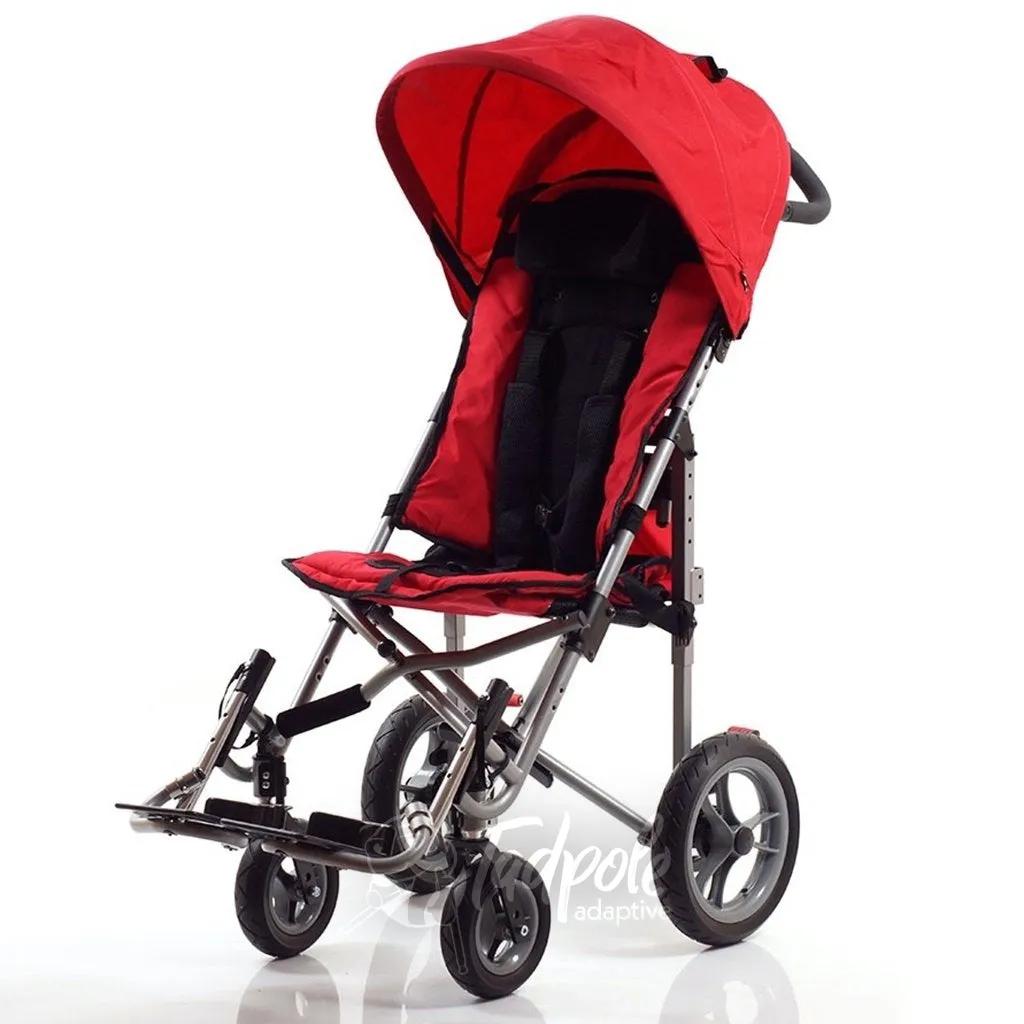

Headrest Cover (Canopy)

Offers protection against sunlight and environmental factors.

Abduction and adduction

Lateral Thigh Support (Adductor)

Brings thighs closer to enhance hip alignment and stabilize sitting posture. The level of adduction is adjustable to accommodate postural asymmetry.

Cushions

Support - General Use Cushion

The soft foam base offers support and improves tolerance, contributing to the user's comfort.

Leg and foot supports

Angle Adjustable Footplates

The footplate angle can be adjusted to accommodate dorsal/plantar extensions or contractures, ensuring correct foot positioning and alignment.

Abduction and adduction

Medial Thigh Support (Abductor)

Spreads thighs apart to enhance hip alignment and stabilize sitting posture. The level of abduction is adjustable to accommodate postural asymmetry.

Leg and foot supports

Foot Positioners

Adjustable Velcro® straps assist in correctly positioning the feet on footplates, maximizing the area of contact and ensuring proper foot alignment.

Leg and foot supports

Footplate Securement Strap

The strap holds the individual footplates together, stopping them from flipping up, which is particularly useful for individuals with high muscle tone.

Head supports

Headrest Extension

Increases the height of the backrest to offer head support for taller users.

Trays

Upper Extremity Support Surface (Foam Tray)

The foam transit tray offers extra support during transportation of the occupant in a bus or van. It is intended for use only when a tray is necessary for daily activities under specific circumstances.

Cushions

Position - Medial Thigh Support/Anti Thrust

Medial thigh support aids in moving the legs from an abducted position into a medial alignment, enhancing weight-bearing and maximizing the area of contact for load distribution.

Postural supports

H-Harness with Padded Covers (3-Pt Positioning Belt Req)

Offers the occupant front (anterior) support for the upper body, helping to maintain trunk positioning and prevent fatigue in the upper body.

Vests, belts and straps

3-Point Positioning Belt

A 3-point positioning belt, featuring a depth-adjustable crotch strap, assists in correctly positioning the user's pelvis and prevents slipping forward under the seat belt (submarining) out of the chair.

Head supports

Headrest Extension - Rectangular - Textilene

Increases the backrest height to offer head support for taller individuals, particularly on transit models, to help prevent head whiplash in the event of a rear-end collision.

Outdoor use

Mosquito Net

The mosquito net is crafted to safeguard the user against mosquitoes and various other insects.

Head supports

Occi-Headwings

Offers sub-occipital support to aid in positioning the head at the midline.
